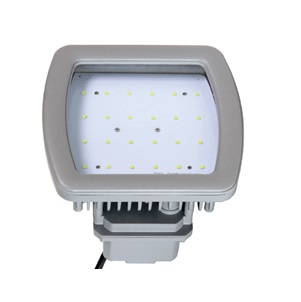

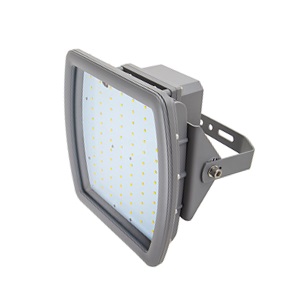

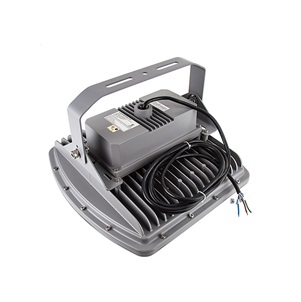

OZ-Exp-FL1
- Model: OZ-EXP-FL1
- Color Temperature – CCT: 3000K, 4000K, 6000K
- Operating Frequency: Ac100-277 V, 50/60Hz
- Color Rendering Index: >70
- Power Factor λ: >0.95
- Sdcm: <5
- Efficiency In %: >98%
Quality Products
we believe on quality
Free Inquiry
you can get a quote from Us
24/7 Customer support
Contact us now
General Specification
Process Quality and Assurance
Presentation
General Specification
| Model NO | CL-001-20W | CL-001-30W | CL -001-40W | CL -001-50W | CL -001-60W | CL-001-80W | CL-001-100W | CL-001-120W | CL-001-150W | CL-001-200W |
| Lamp Pow | 20W | 30W | 40W | 50W | 60W | 80W | 90W | 100W | 120W | 150W |
| Solar Panel | 45W | 50W | 70W | 80W | 90W | 100W | 115W | 135W | 165W | 200W |
| Lithium Battery | 192WH | 240WH | 336WH | 384WH | 480WH | 576WH | 768WH | 922WH | 1152WH | 1536WH |
| LED Quantity | 2 models | 2 models | 3 models | 3 models | 4 models | 4 models | 5 models | 5 models | 6 models | 6 models |
| Luminous Flux | 3200lm | 4800lm | 6400lm | 8000lm | 9600lm | 12000lm | 14000lm | 16000lm | 18000lm | 21000lm |
| CCT | 3000-6500K | |||||||||
| CRI | >70Ra | |||||||||
| Charging Time | 4-6 hours | |||||||||
| Working Time | 2-4 rainy days | |||||||||
| Working Temperature | -20℃~60℃ | |||||||||
| Lifespan | ≥50000hours | |||||||||
| Material | Aluminum alloy | |||||||||
| IP Rating | IP65 | |||||||||
| Case Diameter | 60-108mm | |||||||||
| Mounting Height | 5-6m | 6-7m | 7-8m | 8-9m | 8-12m | 8-12m | 8-12m | 10-12m | 10-15m | 10-15m |
| Mounting Distance | 18-25m | 20-30m | 25-30m | 25-35m | 25-35m | 25-35m | 25-40m | 30-40m | 30-40m | 30-50m |
