Electrical Data
- Model: OZ-EXLL-02
- Operating Frequency: 220-265 V, 50/60Hz
- Power Factor λ : >0.95
- Efficiency In %:>92%
- Start time(0.2s/0.5s/: 0.1S
- Warm-up time to 60%: 0.5S
Photometric Data
- Color Temperature: 3000K, 4000K, 6000K
- Color Rendering Index: >80
- Sdcm: <6
- Thermal Conductivity: 226 W/m K
- THD: <15
Material & Protection
- Protection: 1P65

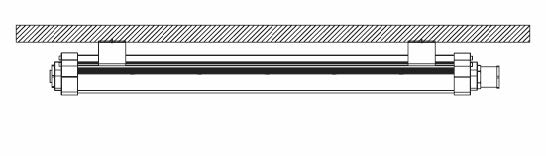

- Installation: Multiple

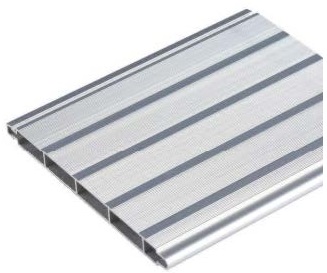

- Material: Pure Aluminum A6063
Temperature
- Operating Temprature : -40~+50c
Item Ref
- OZ-EXHB-02-620
- OZ-EXHB-02-640
- OZ-EXHB-02-1240
- OZ-EXHB-02-1260
- OZ-EXHB-02-1280
Power
- 20 Watt
- 40 Watt
- 40 Watt
- 60 Watt
- 80 Watt
Luminous flux
- 2400Lm
- 4800 Lm
- 4800 Lm
- 7200 Lm
- 9600 Lm
Source
- Bridgelux
- Bridgelux
- Bridgelux
- Bridgelux
- Bridgelux
Corrosion-pro
- WF2
- WF2
- WF2
- WF2
- WF2
P.F
- > 0.95
- > 0.95
- > 0.95
- > 0.95
- > 0.95
CRI
- > 70
- > 70
- > 70
- > 70
- > 70
